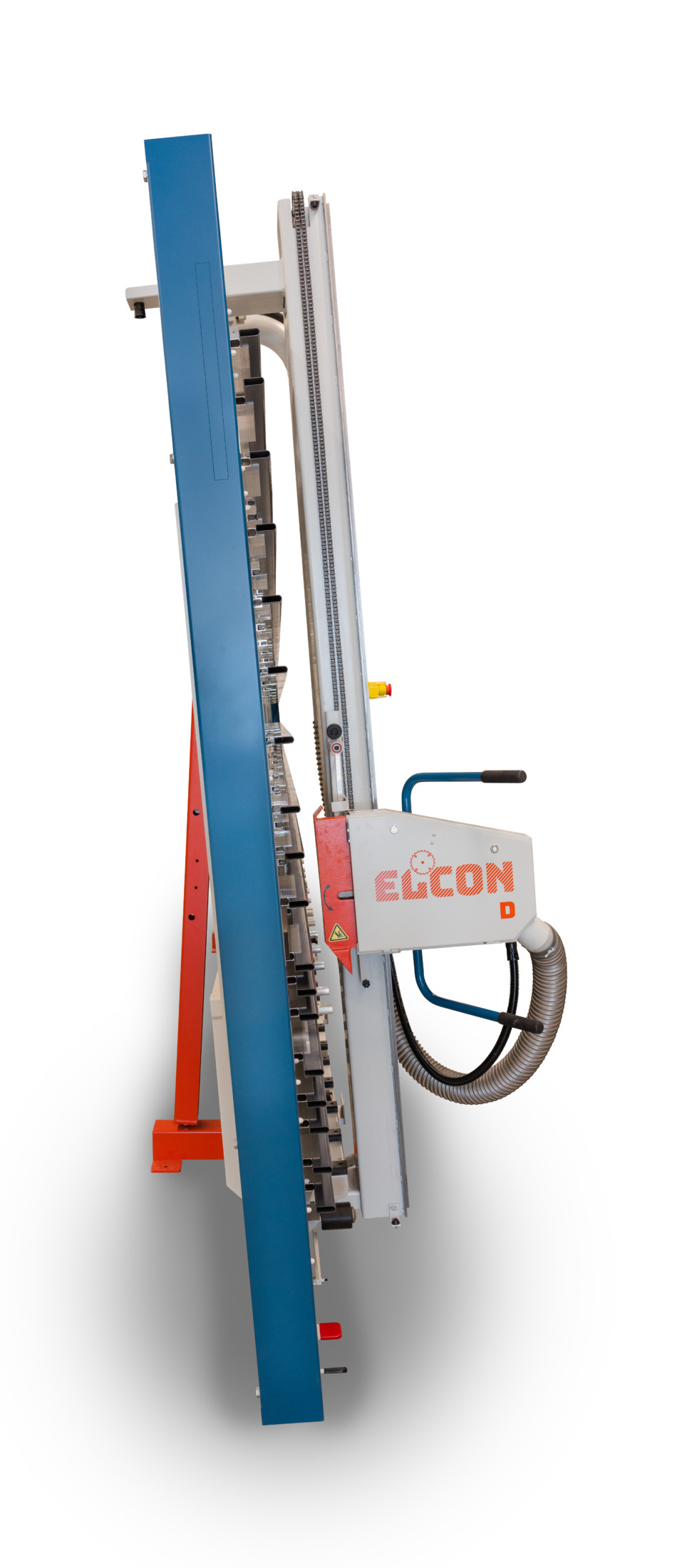

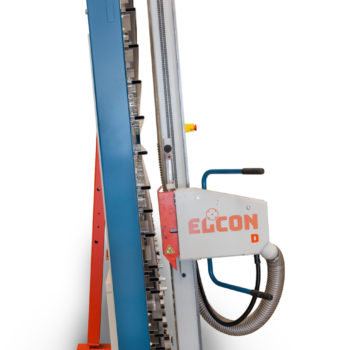

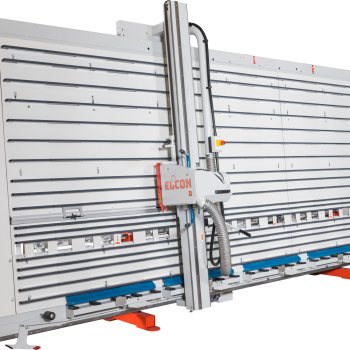

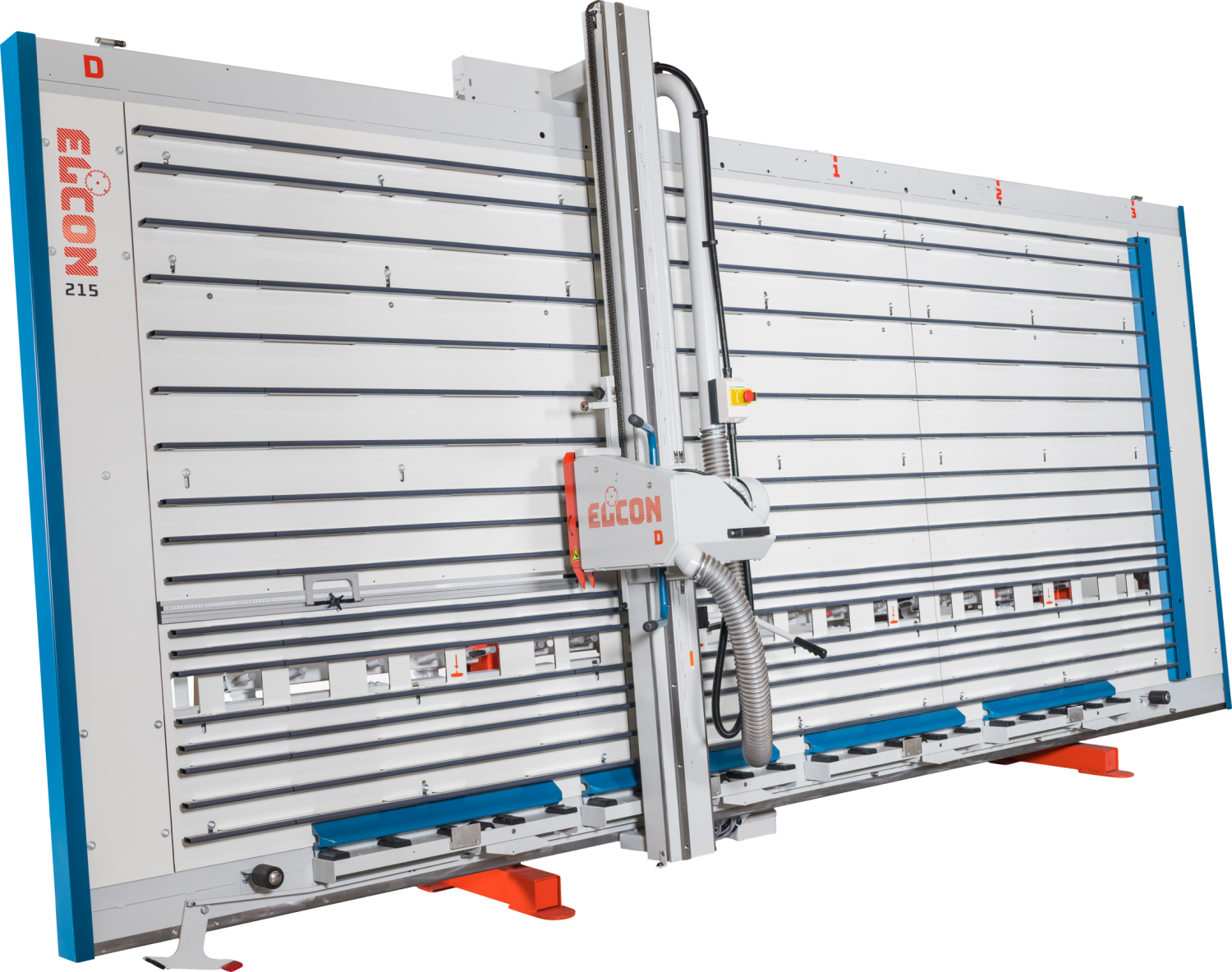

D Series

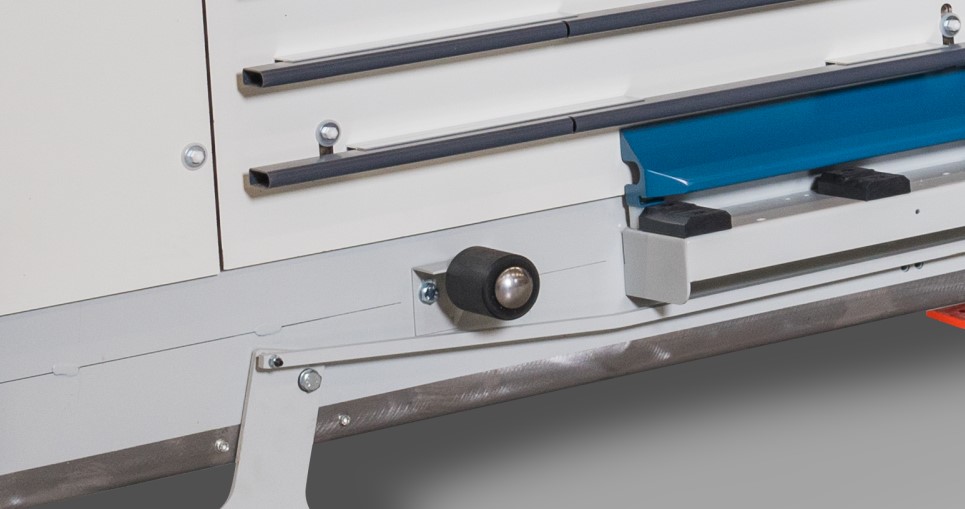

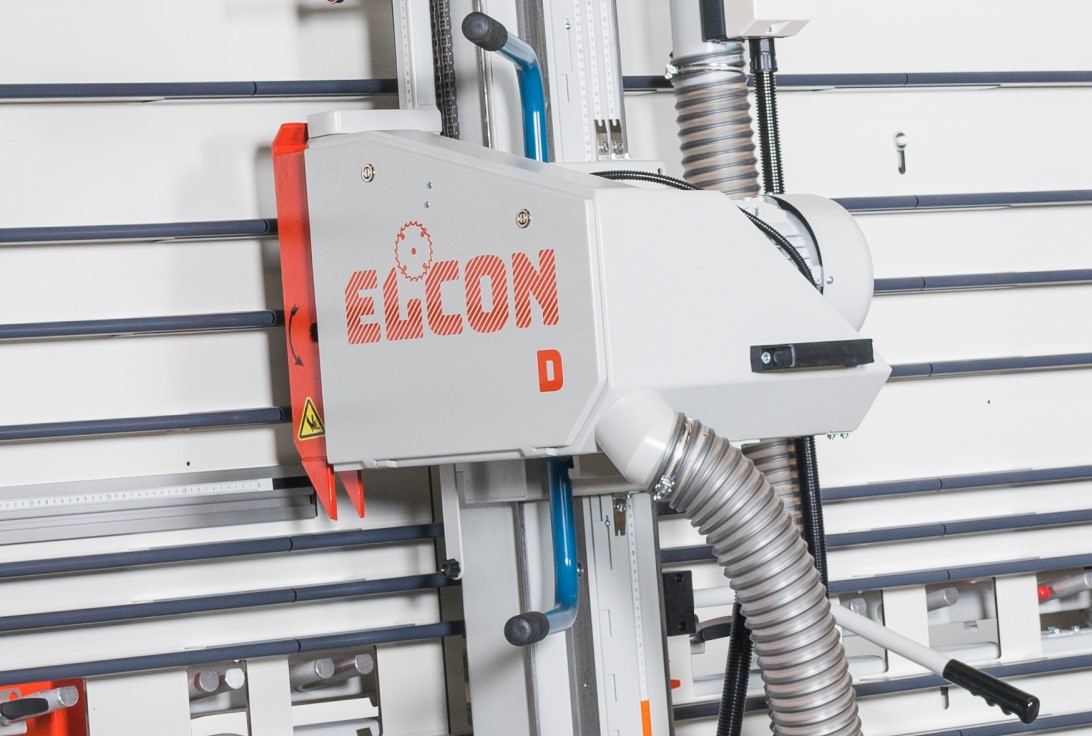

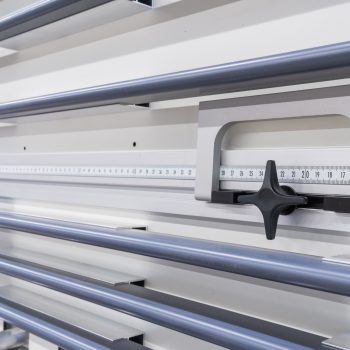

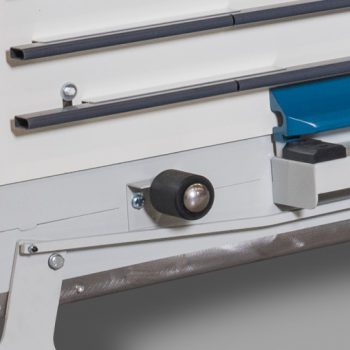

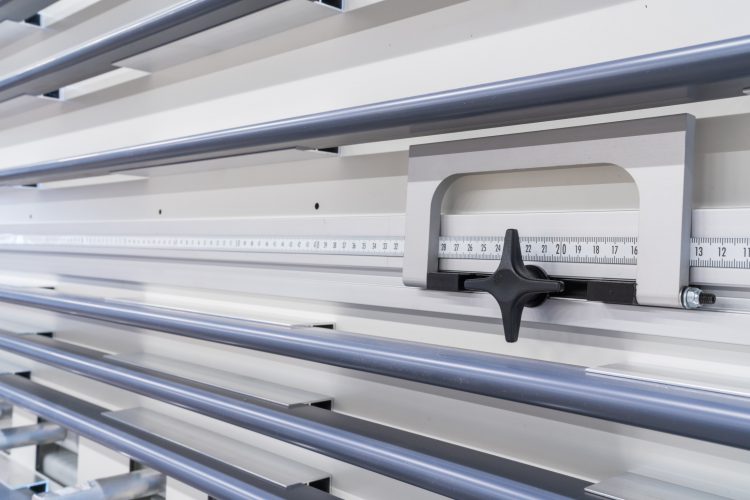

The D-range contains the most economical versions. With the same heavy robust frame and despite a fully complete equipment, this model is offered at a very attractive price. In the basic version this machine has a powerful 4 kW (s6) motor, extra depth of the saw blade, 2 entry rollers and a repeat stop for strip cutting.

Download brochure

Characteristics

Specifications

Product versions and dimensions

155 185 215
A 650 mm 650 mm 650 mm
B 1100 mm 1100 mm 1100 mm
C 4720 mm 4720 mm 5720 mm
D 1980 mm 2280 mm 2580 mm
E 2265 mm 2565 mm 2865 mm
155 185 215
Weight in KG 640 KG 705 KG 825 KG
Maximum cutting length 3300 mm 3300 mm 4300 mm
Maximum cutting height
1505 mm hor.
1550 mm vert.
1805 mm hor.
1850 mm vert.
2105 mm hor.
2150 mm vert.
Maximum cutting depth 60 mm 60 mm 60 mm
Motor 4 kW 4 kW 4 kW
Saw speed 5100 rpm 5100 rpm 5100 rpm
Diameter saw blade 250 mm 250 mm 250 mm
Electrics 400V/3ph/50Hz 400V/3ph/50Hz 400V/3ph/50Hz
Dust collector requirements 20m/sec 20m/sec 20m/sec
