Advance Series

Do you want to advance the way of working? The ADVANCE turns things upside down.

Keep the panel on the machine and start cutting from the bottom instead of from the top! The benefits? No more intermediate stocking of strips can save a lot of time and energy.

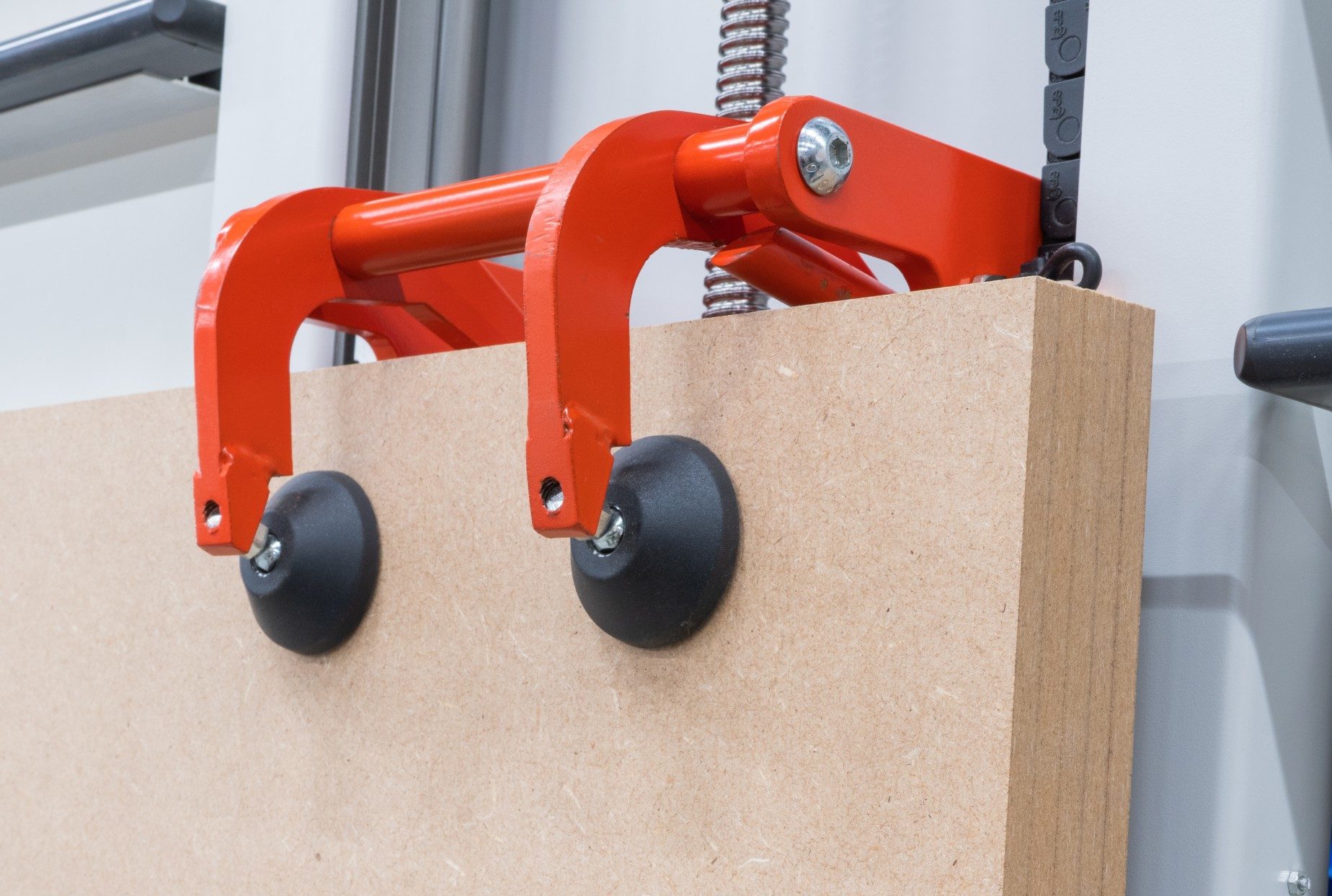

Available as manual or automatic, the ADVANCE machines make cutting panels to size easier than ever before. How? By literally turning the way you work up side down. The advance clamps hold the panel(s) on the machine and eliminate the need for manipulation, turning or stocking strips in between horizontal and vertical cuts. Moreover it offers the possibility to trim the bottom of (multiple) panels.

Download brochure



Product versions and dimensions

185 215
A 945 mm 945 mm
B 1750 mm 1750 mm
C 5510/6510 mm 5510/6510 mm
D 2580 mm 2580 mm
E 3050 mm 3050 mm
185 215
Weight in KG ±1000 KG ±1100 KG
Maximum cutting length 4.300/5.300 mm 4.300/5.300 mm
Maximum cutting height
2000 mm hor.
2100 mm vert.
2000 mm hor.
2100 mm vert.
Maximum cutting depth 55 mm 55 mm
Motor 4 kW 4 kW
Saw speed 5000 rpm 5000 rpm
Diameter saw blade 300 mm 300 mm
Electrics 400V/3f/50Hz 400V/3f/50Hz
Dust collector requirements 20m/sec 20m/sec
