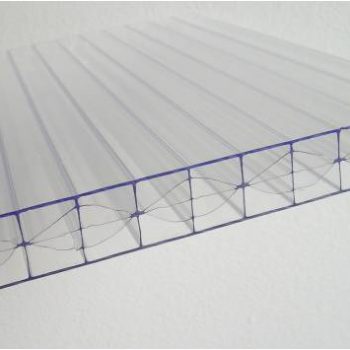

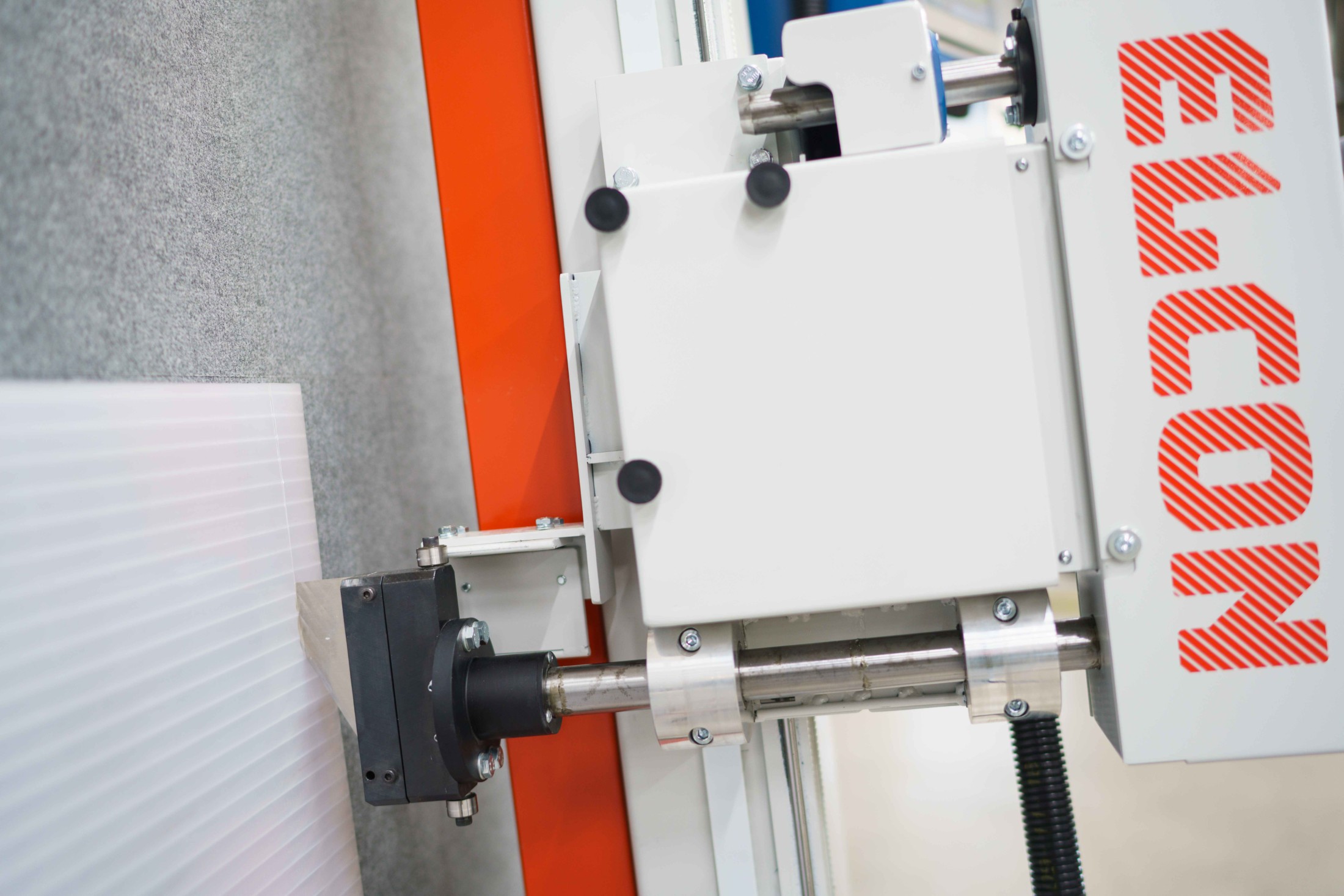

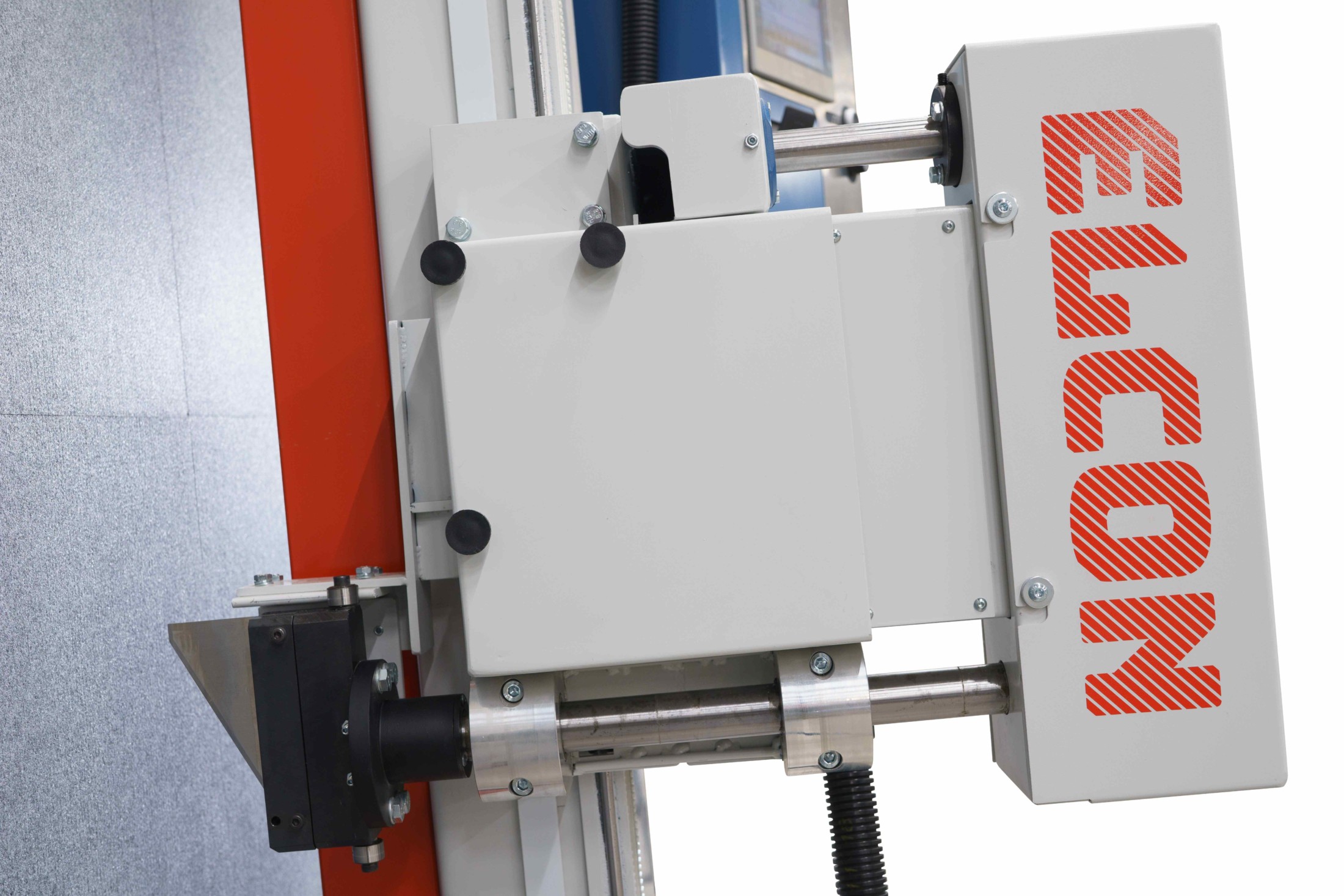

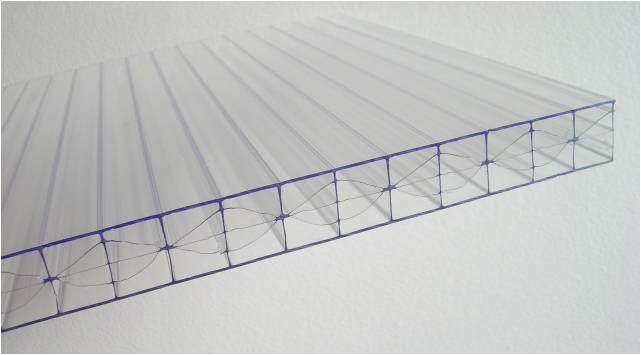

The Lancet cutting machine, using a fixed knife to cut Multiwall Polycarbonate Sheets. Saving huge amounts of time on cleaning out the channels compared to cutting this materials with a circular saw blade.
Specification of the machine in the video (other dimensions on request).
Cutting height: 2.150 mm
Cutting length: 6.300 mm
Cutting depth: 32 or 50 mm (single panels)
Necessary air pressure: 8 bar
Dimension for horizontal cutting: electronic positioning via Touch-screen
Dimension for vertical cutting: manual positioning with optical scale
Feeding speed: steplessly variable up to 60 m/min

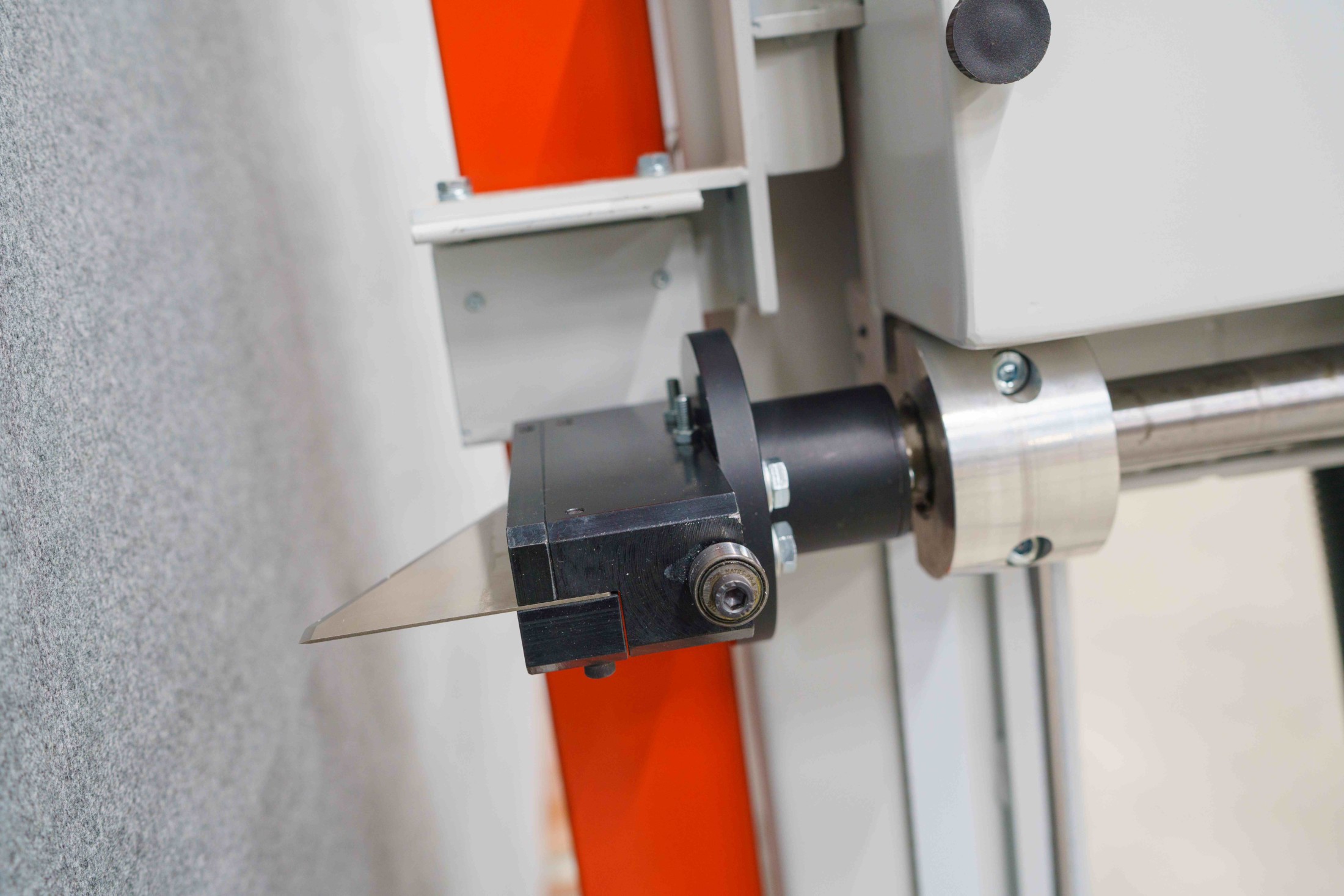

Pneumatic plunging cutter knife
Pneumatic tilting cutter knife
Fixed, closed back-side support with felt
Bottom panel support with stainless steel sliding surface
Pneumatic moving right-hand stop
Pressure beam for vertical cutting
Panel clamps in bottom support
